Technical data
Get a quick overview of key technical data from the VERTICAL data sheet.
Dimensions
300 x 500 x 95 mm
Total weight
< 120 kg/m2
Weight at field capacity (drained)
80 kg/m2
Frontmaterial
15-20 kg/m2
Plants
10 kg/m2

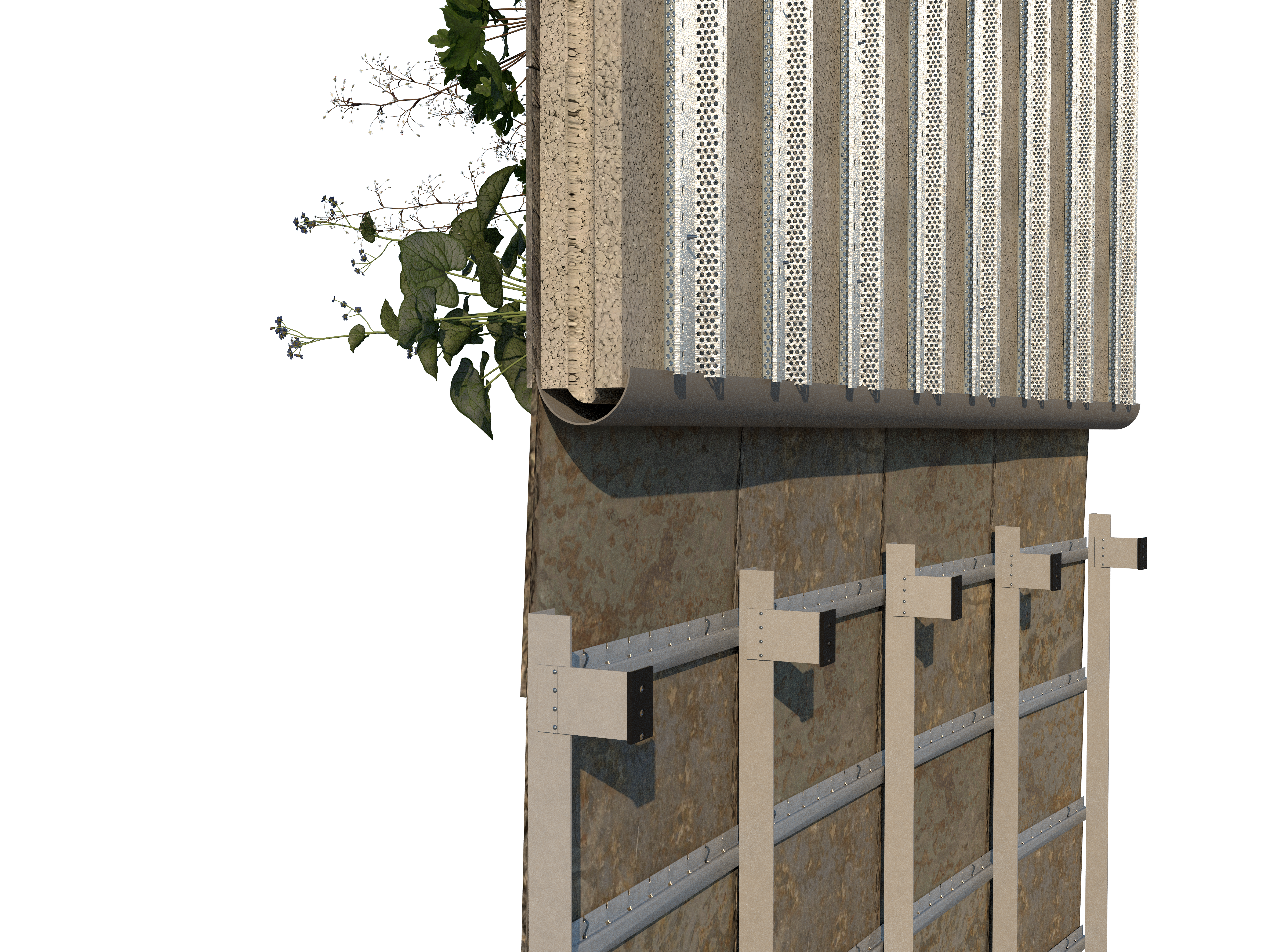

Mounting profiles
4 kg/m2
Waterretention
25 L/m2
Air content at field capacity
25 vol%
Frost limit
-32°C
pH
7
Plantingdensity
22/m2
Water consumption
1-3 L/m3/døgn
Fire
The complete VERTICAL system without plants has an A1 classification — non-combustible according to EN 13501-1.
In addition, the system has been tested with plants in fully dried condition (worst case) according to EN 13823, which is part of the SBI test and measures energy development over time, smoke production, horizontal spread, and flaming droplets. The system achieved a B classification, which is the best possible.
EN 13501-1 // System Classification Without Plants Including Front Material, Growth Element, and Mounting Profiles
A1
EN 13823 // jf. SBI
B
All VERTICAL façades are supplied with project-specific irrigation and technical cabinets, which are installed by our specialists together with the façade. These ensure the correct moisture and nutrient levels for the plants throughout the season and are connected to our real-time online monitoring of the green facade’s condition, keeping our back office informed.
Our irrigation technology is highly reliable, and all systems are fully frost-protected, allowing them to withstand all seasons. Due to the monitoring and
monitoring of the green facade’s condition ensures that irrigation is carried out precisely and without any risk that seasonal or weather conditions will cause water shortages at the early start of the growing season. This also means that the water supply can be accurately dosed throughout the year, keeping water waste to a minimum.
With our irrigation system, you can choose to irrigate with mains water or reuse collected rainwater for irrigation.
